Product introduction:
Needle distance: 14G
Weaving range: 36, 52, 72 (inches)
Weaving speed: 24 segment selection, the highest speed of 1.2m/s, using AC servo motor control, servo motor using precise feedback control and combined with high-speed computing ability of digital signal processor (DSP), control IGBT to produce accurate current output;
Knitting system: single machine head dual system
The function of knitting needle, hanging head, pick holes, jacquard, intarsia, Ming received needle, dark closed needle, and other regular pattern knitting;
KS: displacement controlled by AC servo motor, move the needle range up to 2 inches, and with fine adjustment function;
Probe warning system: accurate position infrared probe alarm
Read needle signal: Advanced encoder read needle
Turn the needle function: Triangle compound design, single / double coordination can be single or simultaneous turn needle, also can be a system of weaving, to achieve efficient production;
Coil density: stepper motor control, 24 segment density selection, using subdivision technology, adjustable range: 0 - 650 degrees, more accurate control of the length of clothing, closed loop system to monitor the current position of the motor;
The sinker system is controlled by stepping motor, which can be adjusted according to different fabric, and can achieve a variety of needle picking and needle setting effects, and can be adjusted by left and right system;
Sari system computer program instructions, stepper motor control, 24 pull selection, adjustable range: 0-100; optional torque assisted Lola, providing effective force for thick cloth products.
Color changing system 2*8 yam in the side of 4 guide rails, can be in any position switch bar yarn (2*8 standard);
Stitch: optional scissors clip, initial device;
Control system：
1. screen uses LCD industrial display, and the transmission mode adopts USB and network. A large number of flower files can be stored at the same time, and can be used at any time according to production needs;
2. monitor screen: can display all kinds of work parameters and the degree of knitting line value, and in the machine running at any time to adjust, to maximize the convenience of operation and save time;
3. plate making system and control system for independent research and development, the software part of the upgrade is convenient, for free configuration;
4. multi language operating version: support Chinese, English and other language versions, but also according to the needs of customers to set the required language;
Power single-phase 220V/ three-phase 380V, using advanced CMOS technology, in the power failure instant memory and recovery function;

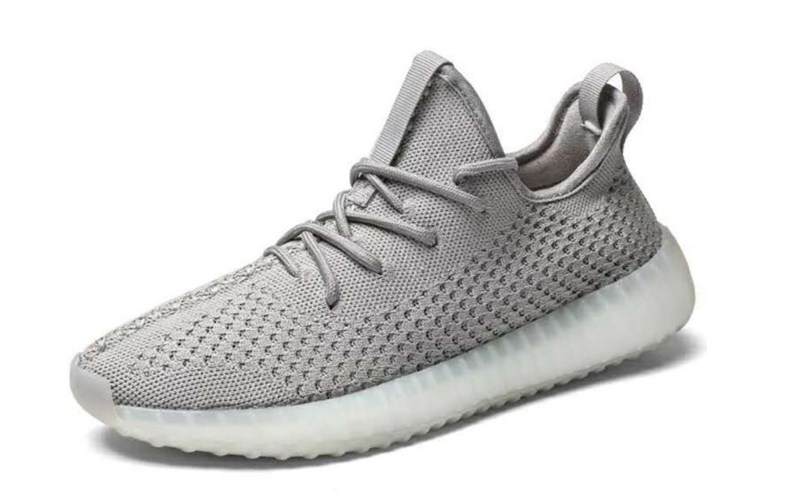

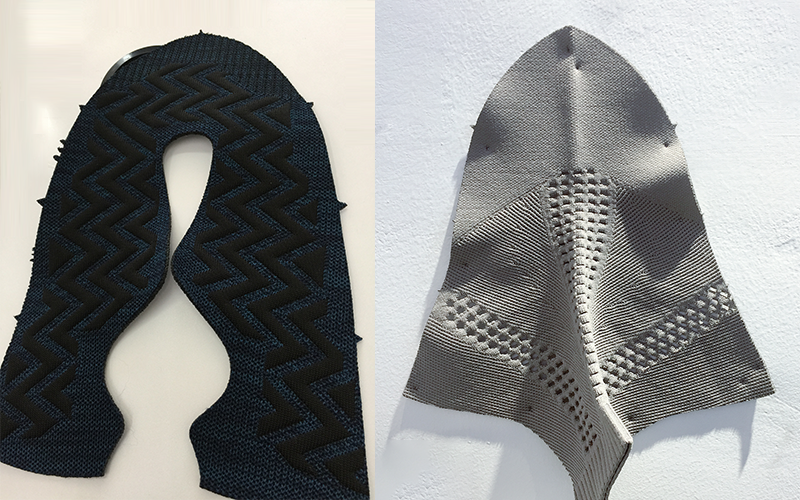

It can knit basic knitting (Siping, single-sided etc.), multi-color jacquard, intarsia no specification (intarsia), twisted flowers, pick holes and weft tissue. Suitable for silk and silk, silk, wool, acrylic, synthetic fiber blended yarn and other raw materials, knitting sweaters and scarves, hats, hosiery and clothing accessories, specializing in the production of 3D is mainly used for shoe.
Adopting industrial LCD, graphic interface, color display. On working condition, parameters like weaving pieces, finished pieces, time, velocity, Roller, mesh number, yarn nozzle etc, could be all displayed clearly on the screen. When running, you can adjust parameters freely. This is the most convenient and time-saving device. All you need to do is just focusing on the fabric and inputting the command, and then all the parameters and pattern types could be changed.
Linear velocity of head can reach 1.5m/s. The stroke can be adjusted according the weaving width. Fast response, accurate location can avoid the invalid movement and increase the production efficiency. Each system is equipped .
